Deep Q Learning

class DQN(nn.Module):
    """Our Deep Q Network implemented in PyTorch."""
    def __init__(self, in_dim=4, hidden_dim=64, out_dim=2):
        super().__init__()
        self.in_dim = in_dim
        self.out_dim = out_dim
        self.hidden_dim = hidden_dim

        self.layers = nn.Sequential(
            nn.Linear(self.in_dim, self.hidden_dim),
            nn.ReLU(),
            nn.Linear(self.hidden_dim, self.hidden_dim),
            nn.ReLU(),
            nn.Linear(self.hidden_dim, self.out_dim)
        )

    def forward(self, x):
        x = self.layers(x)
        return x

dqn = DQN()

dqn(torch.randn(1, 4))

class DQNAgent(Agent):
    """An Agent with a policy given by a Deep Q Network."""

    def __init__(self, learning_rate=0.001, discount=0.99, replay_size=10_000, batch_size=64, rng=None):
        self.dqn = DQN()
        self.replay = []
        self.discount = discount
        self.replay_size = replay_size
        self.batch_size = batch_size
        self.rng = np.random.default_rng(rng)
        self.criterion = MSELoss()
        self.optimizer = Adam(self.dqn.parameters(), lr=learning_rate)

    def act(self, obs):
        obs = torch.from_numpy(obs).unsqueeze(0).float()
        with torch.no_grad():
            q = self.dqn(obs)
        # choose action with biggest expected future reward
        action = q.argmax(axis=1).item()
        return action

    def remember(self, state, action, next_state, reward):
        """Store experience in the replay buffer."""
        self.replay.append({
            "state": state,
            "action": action,
            "next_state": next_state,
            "reward": reward
        })

        if len(self.replay) > self.replay_size:
            self.replay = self.replay[-self.replay_size:]

    def update(self):
        """Update the DQN with experience from the replay buffer."""
        if len(self.replay) < self.batch_size:
            raise RuntimeError("did not gather enough experience yet!")
        # 1. sample past experiences from the replay buffer
        samples = self.rng.choice(self.replay, self.batch_size, replace=False)
        states = torch.stack([torch.from_numpy(sample["state"]).float() for sample in samples])
        next_states = torch.stack([torch.from_numpy(sample["next_state"]).float() for sample in samples])
        actions = torch.tensor([sample["action"] for sample in samples])
        rewards = torch.tensor([sample["reward"] for sample in samples])
        ids = torch.arange(len(samples))
        # 2. predict expected future reward using dqn for current and next state
        with torch.no_grad():
            # although similar, [:, actions] uses broadcasts, we want [ids, actions]
            # q_current = self.dqn(states)[:, actions]
            q_current = self.dqn(states)[ids, actions]
            q_next, _ = self.dqn(next_states).max(axis=1)
        # 3. compute target q value of next iteration
        # we can actually cut the first part, as Adams learning rate will already handle that
        # q_target = (1 - self.learning_rate) * q_current
        q_target = rewards + self.discount * q_next
        # 4. train dqn via gradient descent according to update equation
        y_pred = self.dqn(states)
        y_true = y_pred.detach().clone()
        y_true[ids, actions] = q_target
        loss = self.criterion(y_true, y_pred)
        loss.backward()
        self.optimizer.step()
        self.optimizer.zero_grad()
        return loss.item()

from tqdm import trange

def train_dqn(agent: DQNAgent, n_episodes=100, exploration_start=0.95, exploration_end=0.01, rng=None):
    env = gym.make("CartPole-v1", render_mode="rgb_array")
    rng = np.random.default_rng(rng)
    train_rewards = []
    train_loss = []
    train_len = []

    for i in trange(n_episodes):
        observation, info = env.reset(seed=19)
        terminated = False
        truncated = False
        total_reward = 0
        steps = 0

        # epsilon annealing: linear decay of exploration rate
        exploration_rate = exploration_start + (exploration_end - exploration_start) * (i / n_episodes)

        while not terminated and not truncated:
            steps += 1

            p = rng.random()
            if p <= exploration_rate:
                # select a random action for exploration
                action = env.action_space.sample()
            else:
                # otherwise exploit our agent's knowledge
                action = agent.act(observation)

            # apply the selected action to the environment
            next_observation, reward, terminated, truncated, info = env.step(action)

            if terminated:
                reward = -100
            total_reward += reward

            # TODO: standardize observation and next_observation?
            agent.remember(observation, action, next_observation, reward)
            observation = next_observation

            if len(agent.replay) >= agent.batch_size:
                loss = agent.update()
                train_loss.append(loss)

        train_rewards.append(total_reward)
        train_len.append(steps)

    info = {"rewards": train_rewards, "loss": train_loss, "len": train_len}
    return info

dqn_agent = DQNAgent(learning_rate=1e-3, discount=0.9)
train_info = train_dqn(dqn_agent, n_episodes=100)

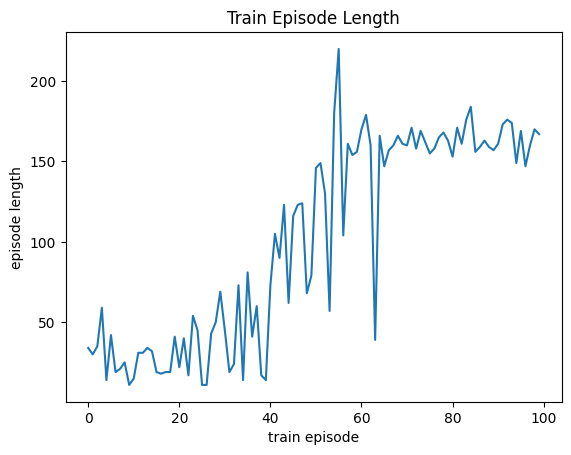

plt.plot(train_info["len"])
plt.xlabel("train episode")
plt.ylabel("episode length")
plt.title("Train Episode Length");

evaluate_agent(dqn_agent)

play_episode(dqn_agent)
